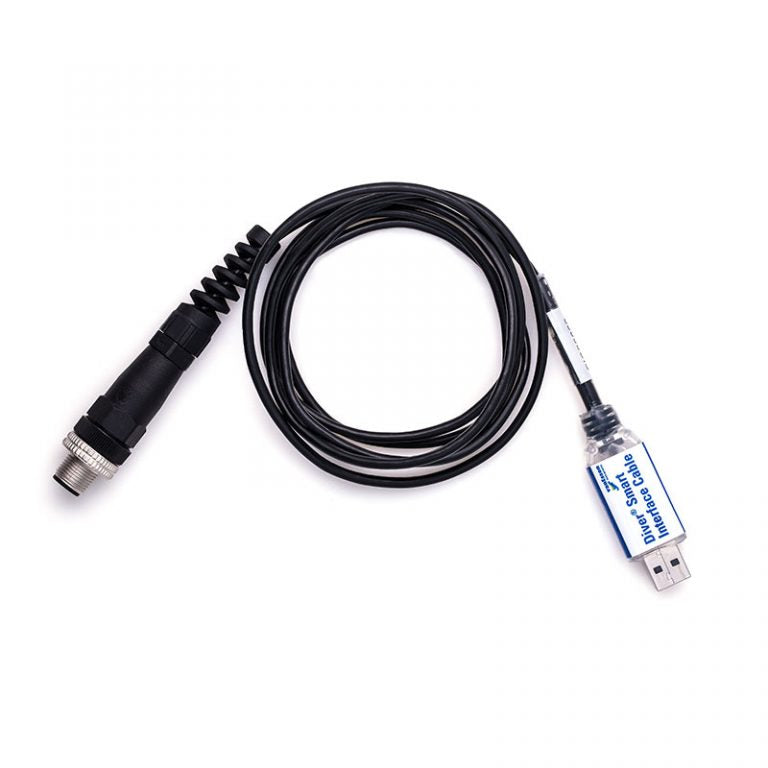

Van Essen Instruments Diver Smart USB Interface Cable
SKU AS346
$303.88
Free Shipping Available
Connect the Divers deployed on a communication cable (DXT or DDC) to a PC, laptop and/or tablet.
The Diver Smart Interface Cable is a communication device that links the Divers to a PC, laptop, and/or tablet. Simply plug the Smart Interface Cable into any available USB port on the computer and connect the other end to the communication cable. The deployed Diver can now be accessed using the free Diver-Office software. Once connected, the Diver can be programmed, settings read, or data downloaded.
- Features a barometric sensor that allows for real-time comparison of Diver readings and manual measurements. After connecting the Smart Interface Cable, the Diver can be returned to its original position in the well with the supplied Suspension Plate.
- Features indicators that identify if a cable is connected, a Diver is connected to the communication cable, or if the communication cable is malfunctioning.
- Can be used for communication cables from 1 meter up to 500 meters in length.
- Designed for use in the field and supports all Divers.
Note: Diver-Office 2017.2 or later must be installed to communicate to the Diver through the Diver Smart Interface Cable.
Features & Benefits Click here to learn more about the product.
Features
- Real-time atmospheric pressure measurement
- Informational indicators: ready, sending data, receiving data
- Warning indicators: Diver not connected/communicating, cable malfunctioning
Benefits
- Plug-and-play
- Compare Diver measurements to manual measurements
Key Specifications Click here to view product specifications.
General
| Power supply | USB |
| Length USB cable | ~1.80 m |
| Temperature Range | -20 to 60 °C |
| Supported communication cable length (DXT or DDC) | 1 to 500 meter |
Barometric pressure sensor
| Value | Unit | |
|---|---|---|
| Range | 400 to 1100 | cmH2O |
| Accuracy* | ±2.0 | cmH2O |
| Resolution | 0.06 | cmH2O |
* over temperature range -20 to 60 °C
