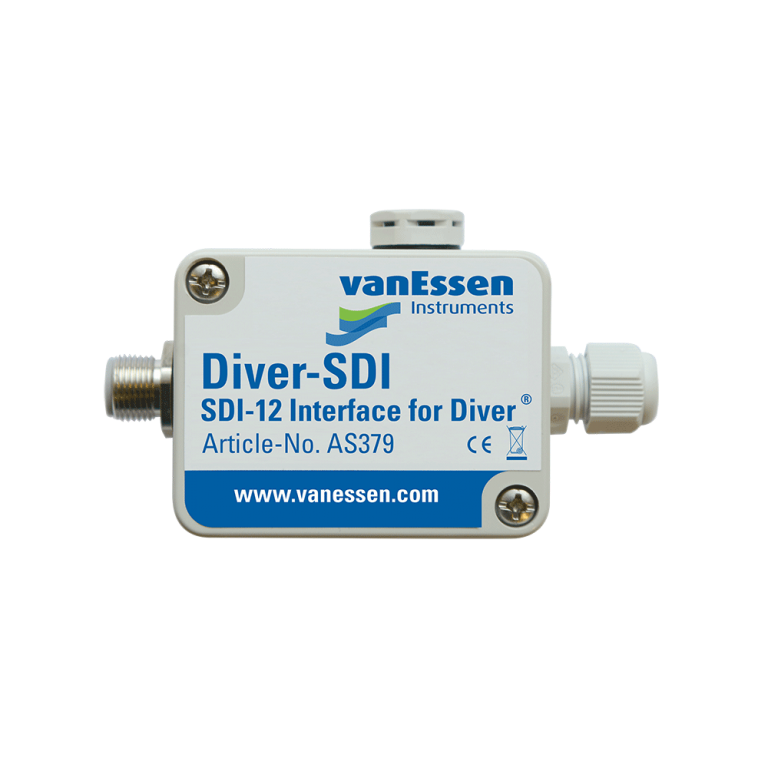

Van Essen Instruments Diver-SDI
SKU AS379
$433.35
Free Shipping Available
The Diver-SDI integates Divers with SDI-12 remote monitoring systems.
The Diver-SDI integrates Divers with SDI-12 remote monitoring systems. A typical SDI-12 system is illustrated in the figure below. On one end the Diver-SDI is connected to the SDI-12 sytem through the 3-wire SDI-12 bus, which also includes the power supply of 12 Volt. On the other end, a Diver cable (AS2xxx) is attached to connec the Diver-SDI to a Diver. Diver cables up to a length of 500 meters (1,640 ft.) can be used with the Diver-SDI
Features & Benefits Click to learn more about the product.
Features
- The Diver-SDI has a built-in pressure and temperature sensor for measuring real-time air temperature and atmospheric pressure.
- Automatic barometric compensation of the Diver pressure readings.
- Dynamic density compensation for accurate water levels in saline conditions when used in combination with the CTD-Diver.
- External power supply through SDI-12 system.
Benefits
- No need for additional sensors to measure air temperature and atmospheric pressure.
- No need for post-processing the pressure data.
- Accurate water levels when water density varies due to salt content.
- No internal battery is required. The compact Diver-SDI can be mounted inside the well casing for long-term, uninterrupted use.
Applications Click here to see product applications.
- Real-time monitoring of municipal water supplies
- Saltwater intrusion monitoring
- Monitoring water quality and quantity at mine sites
- Monitoring water level and salinity of reclaimed water
- Groundwater monitoring networks
