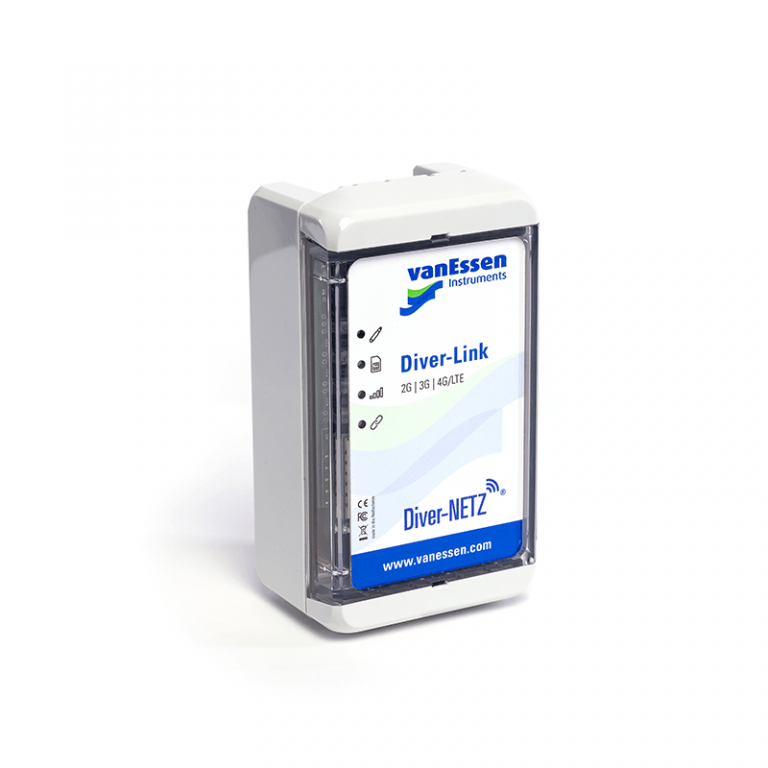

Van Essen Instruments Diver-Link with Telenor SIM
Free Shipping Available
The Diver-Link is our complete telemetry solution.
The Diver-link is a durable and easy-to-install telemetry unit for remote monitoring of ground and surface water levels. It features a compact design with the latest 4G/TLE wireless technology and can be used in a variety of bore-hole locations such as flush mount and stick-up wells.
It is part of a complete telemetry solution. A remote monitoring system that integrates field instrumentation with wireless communication and data management to effectively manage (ground)water resources. It is suitable for continuous long and short-term monitoring projects.
The Diver-Link transmits data from a single Diver datalogger, connected by a DXT Cable, over a cellular or mobile network. Up to 3 Divers can be connected to the Diver-Link Triple. Both versions are available with an internal or external antenna. An external antenna provides better signal strength and coverage, especially in areas with poor recption or in case the Diver-Link is placed inside a metal well casing.
Configuration and management are done through the Diver-HUB web portal, a web portal for real-time management of site data, and monitoring equipment and water level.
Deployment of the Diver-Link is simple; insert the battery and connect the unit to a Diver .In the field, the Diver-Link can be operated using the magnetic funcion keys to activate the unit. Future firmware updates are automatically executed 'over the air', so there is no need for additional site visits.
Features & Benefits Click here to learn more about the product.
Features
- Connect up to 3 Divers
- Data logging and transmission
- Compact enclosure
- Lithium battery operated
- Internal or external antenna
- Barometric datalogger
- IP67 rating and magnet operated, Bluetooth Smart enabled
- Over-the-air firmware update
- Compatible with all Diver dataloggers and cables
Benefits
- Saves space in the well enclosure, a cost-effective solution
- Always up-to-date without the need for data collection ‘in the field’
- Diver-Link fits almost any well
- 5+ years of battery life
- Automatic barometric compensation: no data post-processing
- Avoid water or dust ingress
- Keep the Diver-Link up-to-date without site visits
- Easily upgrade an existing Diver monitoring network to remote monitoring
Applications Click here to view product applications.
- Monitor potable water recharge areas for water supply
- Monitor tailings ponds, dewatering activities and water supply levels of mines
- General site investigations for construction
- Contaminant plume monitoring on spill sites, remediation sites, chemical storage facilities, landfill sites and hazardous waste storage sites
